MINERAL FILLED BRUSHABLE, LIQUID WEICON Ceramic BL
10000093(10400005) 0.5KG IMPA:812937 ;
10005233(10400020) 2KG IMPA:812938;
WEICON Ceramic BL 耐磨型陶瓷修补剂,以环氧树脂为基材，由碳化硅和硅酸锆填充，涂覆后具备良好的化学耐受力、耐温性及高度的抗磨能力，以此实现绝佳的耐磨保护，尤其适合用来为高度负荷的泵壳提供内衬，为滑动轴承、滑块、漏斗和管道提供耐磨保护，以及修复铸件、阀门和鼓风机。该产品的涂覆效果十分光滑，能够有效地提高材料表面上液体的流速，从而将泵、管道、阀门等的工效提高 5% 至 20%。可广泛用于机械和设备制造、仪器制造及其他诸多工业领域。该产品作为具有防磨损效果的面漆，可搭配所有型号金属修补剂来使用。与任意一款其他型号的WEICON金属修补剂结合使用时，WEICON 耐磨型陶瓷修补剂 BL因其鲜艳的蓝色故可用于视觉检测。WEICON Ceramic BL is filled with silicon carbide and zirconium silicate, offers high chemical and temperature resistance as well as extreme wear protection and high abrasion resistance. The epoxy resin system is especially suited for the lining of heavily stressed pump housings, as wear protection for slide bearings, slides, funnels and pipes and for the repair of castings, valves and blower fans. A coating with WEICON Ceramic BL, which gives surfaces a very smooth finish, increases the flow speed of liquids and thus increases the efficiency of pumps, pipes, valves, etc. by 5 % to 20 %. The product can be used in mechanical and plant engineering, in apparatus engineering and in many other areas of industry. Wear-resistant final coating for all Plastic Metal types. WEICON Ceramic BL is suitable in combination with one of the other WEICON Plastic Metal types for a system build-up as a surface finish for visual inspection.
应用场景

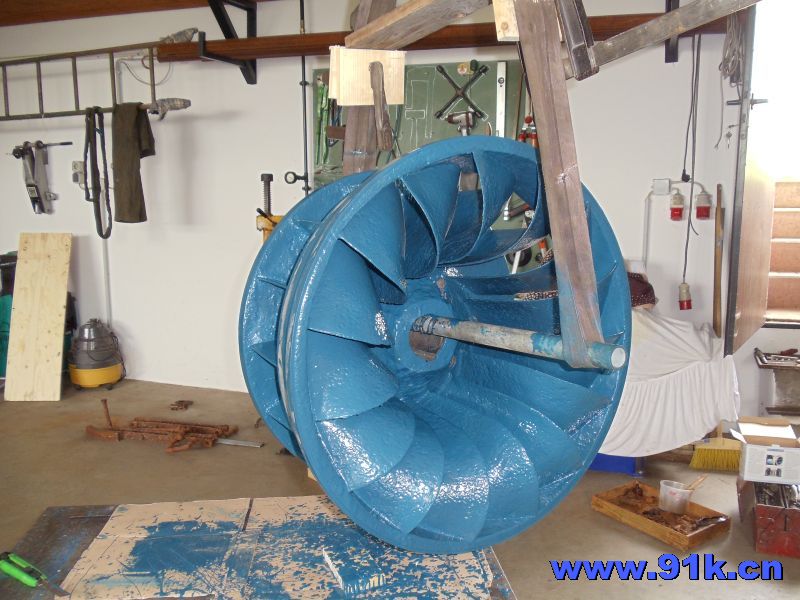

🔧 泵阀系统升级：修复离心泵叶轮磨损，耐气蚀性能提升400%🔧 输送管道强化：5分钟涂覆形成0.8mm陶瓷装甲，抗颗粒冲刷寿命达10年
🔧 滑动轴承再造：修复导轨/滑块磨损，摩擦系数降低至0.08
🔧 食品机械防护：通过HACCP认证，安全修复灌装设备接触面
🔧 铸件精密修复：1:1混合膏体精准复原阀门密封面，耐受180℃蒸汽环境
技术参数
耐磨系数 3.2×10⁻⁶ mm3/N·m
耐温范围 -50℃~+180℃（峰值220℃）
固化速度 表干2h/完全固化24h
抗压强度 120N/mm2
包装规格 0.5KG/2KG双体系
WEICON Ceramic BL：让每台设备都穿上纳米陶瓷盔甲！欢迎致电索取免费资料+专业技术服务！
